Rainbow Vacuum SRX Main Housing Parts
This category covers the complete Rainbow SRX main housing that includes the power cord, face plate, rear cover assembly, latches, and HEPA filter.
Effective serial number 22000001 with a start date of August 2019 through current production.
Serial number ranges shown are for units sold in the US. The range can differ for units sold outside the US.
Click on any number in the schematic below for details.
Tap + or pinch to zoom in, drag to move, then tap a number.
Zoom in to read the small parts: scroll with Ctrl held, or double-click. Drag to move. Parts stay clickable while zoomed.
| # | Image | Item Name | Item # | Price | Quantity |
|---|---|---|---|---|---|

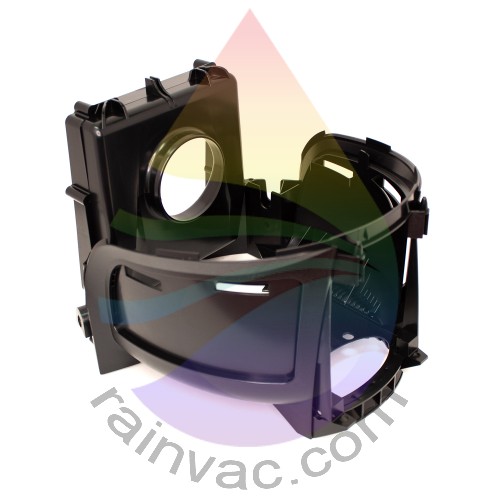

| 1 | Main Housing, SRX | T1001 | $103.35 | ||

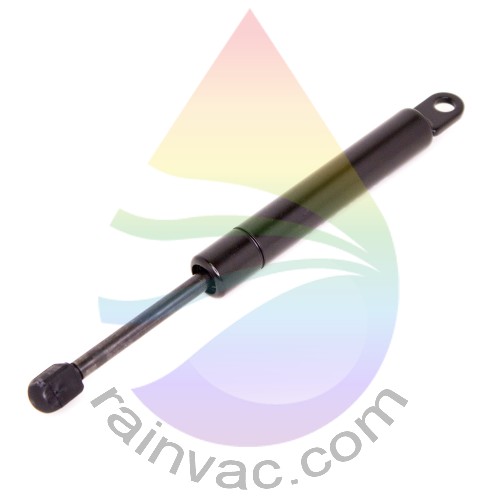

| 2 | Lift Strut, SRX | T1002 | $39.15 | ||

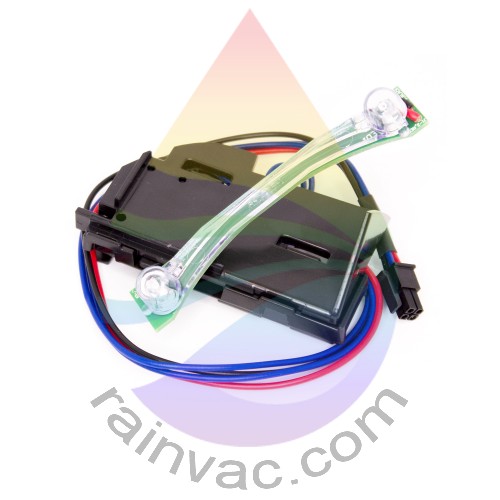

| 3 | Switch, Interlock Assembly, SRX | T1003 | $58.23 | ||
| 4 | Lens, Water Pan-LED, SRX | T1004 | $10.24 | ||
| 5 | Upper Pin, Lift Strut, SRX | T1005 | $3.41 | ||
| 6 | Latch, SRX | T1006 | $7.08 | ||
| 7 | Lens Panel, Right, SRX | T1007 | $14.64 | ||
| 8 | Spring, Latch, SRX | T1008 | $0.95 | ||
| 9 | Controller Asm, 120v, SRX | T1017 | $536.80 | ||

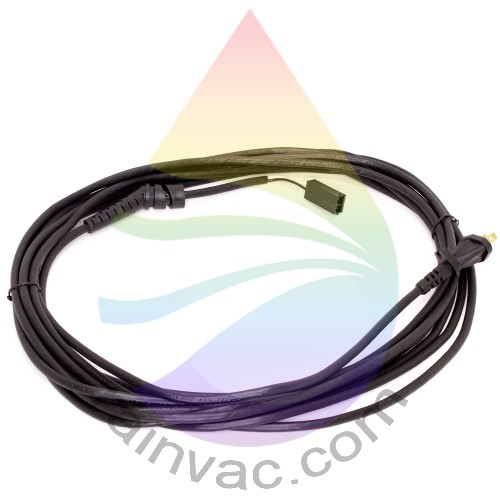

| 10 | Electric Cord, SRX | T1010P | $50.71 | ||
| 11a | HEPA Filter, SRX | T1189 | $44.75 $38.79 | ||
| 11b | Bit, Torx, T20 | T1104L | $3.33 | ||
| 12 | Lens Panel, Left, SRX | T1012 | $14.55 | ||
| 13 | Bellows, Exhaust, SRX | T1013 | $26.33 | ||
| 14a | Clamp, Exhaust Bellows, SRX | T1014 | |||
| 14b | Clamp Gasket, Exhaust Bellows, SRX | T1253 | $2.70 | ||
| 15 | Pin, Latch, SRX | T1015 | $3.87 | ||
| 16 | Harness, Controller/Encoder | T1016 | $23.08 | ||
| 17 | Applique, Cap, Left, SRX | T1157 | $8.68 | ||
| 18 | Applique, Cap, Right, SRX | T1158 | $8.68 | ||
| *19 |  |
Not Applicable | Not Applicable!Unfortunately this item is not obtainable in the U.S. or does not apply to the 110-120 volt version. If you have any questions, please Contact Us or call 301-791-9669.Please Quote: / rainbow vacuum parts / srx / main housing / item 19 |
||
| 20 | Controller Housing Asm, 120v, SRX | T1184 | $46.14 | ||

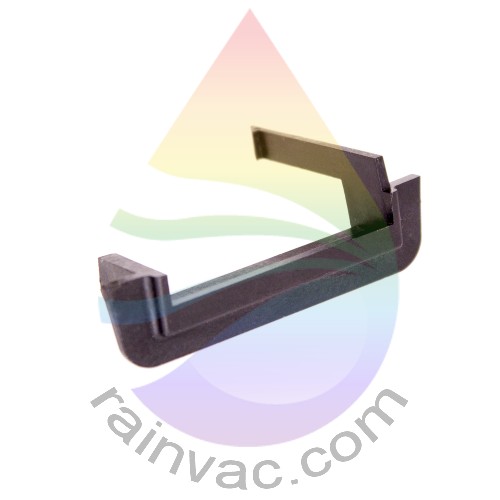

| 21 | Spacer, Heat Sink, SRX | T1185 | $0.98 | ||
